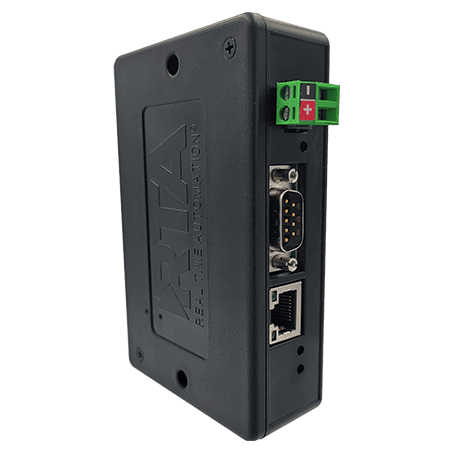

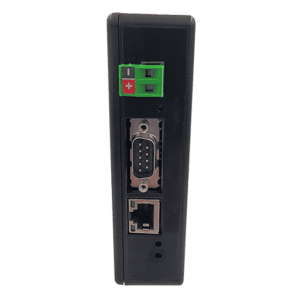

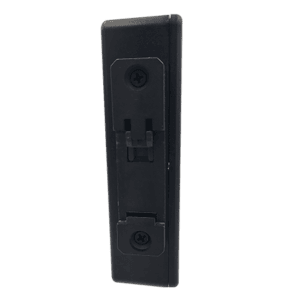

Product Description
Move Your ASCII Data
You’ve just found the easiest way to move ASCII serial data to and from a MicroLogix, ControlLogix, CompactLogix, PLC-5, and SLC5/05 Allen-Bradley PLC over EtherNet/IP. Through simple browser-based configuration, you define the makeup of your ASCII string and then watch it get delivered directly to your user-defined tag or register location in the data table of your PLC. Perfect for barcode scanners, weigh scales and displays.
Need to send ASCII data from the PLC? Simply populate a second tag or register location with the message you wish to send. When the gateway sees a length greater than 0 it will process the data and send it out to the serial device.
One in tag/register one out tag/register, it’s really that simple. No message instruction or IO tree to deal with.
Legacy Device Support
Even though Ethernet is the standard, there is still an awful lot of ASCII data out there. There are a ton of perfectly good scales, barcode readers, RFID devices and a multitude of other units that generate an ASCII string. This is equipment that you’ve used for a long time. You know how to set it up, how to make it work and that it’s reliable for you. Plus, you can probably get it at a really good price since it doesn’t have all the fancy features of the new models.
Simpler is Better
Why wrestle with hours of programming and tedious ladder logic to integrate a simple gateway? Why deal with 50 additional features on a product you don’t need? Or pan through hundreds of pages of a manual just to get your unit configured? With our Barcode to PLC Gateway you don’t have to deal with any of those things. You can easily have our unit up and running in less than 5 minutes.

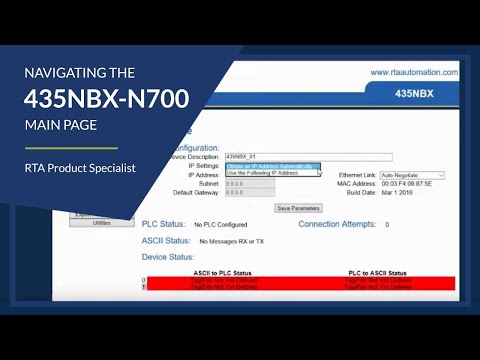

Product Video
Case Study
Crane Sentry System Adds Allen-Bradley Connectivity with Help from Real Time Automation’s 435NBX Gateway Read the case study.
| Real Time Automation ASCII to AB PLC SOLUTION COMPARISON |
||
| Part Number |
435NBX
|
|
| Good For | Barcode Readers, Weigh Scales, Displays and other ASCII devices | Weather Stations, UPS Systems and any other Ethernet TCP/IP devices that output a compound ASCII string |
| PLC Setup | ASCII string gets mapped to a single Tag or Register | ASCII string can be parsed to multiple Tag or Register locations |
| Alarming | N/A | Email alarming available |
| Pricing |
Same Pricing Model
|
|
- Manual
- 3’ Power Cable with Flying leads
- 6' Null Modem Cable
- 5 Year Hardware Warranty
- IPSetup software — Automatically locates RTA Gateway on the network
- Unlimited Firmware Feature Upgrades for Life
- CAT5 Cross over cable for direct connection to PC during programming
- Complete, Unlimited Access to our Industry Leading Support Staff
ASCII Features
Maximum Number of ASCII devices
2
Wide Characters
Add Padding on Outgoing
Serial Communications Port 0
RS232, RS485, RS422
Serial Communications Port 1
RS232
Message Queue Size
Configurable, 0-20 messages
EtherNet/IP Tag Client Features
PLC Support
ControlLogix, CompactLogix, FlexLogix, MicroLogix, SLC’s and PLC5E’s
Maximum Number of PLCs Supported
1
Messaging Operation
Connected or Unconnected
Net ENI Support
Supported
Gateway Security
You can configure a user with access to diagnostic and configuration screens.
Status and Counters
Protocol specific status, counters and error messages are accessible within the gateways diagnostics page.
Diagnostic Logging Page
Allows users to see and log start up sequences, protocol specific messages & error messages.
Platform Comparison
n700
NNA1
Dimensions
4.2″ x 3.25″ x 1″
3.88” x 2.57” x 1.06”
Ports
Serial Communication
Port 0: Male DB9
-Modes Available: RS232, RS485, RS422
-Note: Jumpers must be changed for different Modes
Port 1: Male DB9
-Modes Available: RS232
Limits
-2x RS232
-1x RS485
-1x RS422
Serial Communication
Port 0: 5 Pin Terminal Block (Pins 1, 2, 3)
-Modes Available: RS232
Port 1: 5 Pin Terminal Block (Pins 3, 4, 5)
-Modes Available: RS485
Limits
-Single port use
Ethernet Communication
1 Ethernet Port
-Speed / Link Available
-Ethernet Link: Auto-Negotiate, 10 Mbps; Half Duplex, 10 Mbps; Full Duplex, 100 Mbps; Half Duplex, 100 Mbps; Full Duplex
Ethernet Communication
1 Ethernet Port
-Speed / Link Available
-Ethernet Link: Auto-Negotiate, 10 Mbps; Half Duplex, 10 Mbps; Full Duplex, 100 Mbps; Half Duplex, 100 Mbps; Full Duplex
Power
Two Pin Terminal Block
7V – 24V DC
12V @ 90mA
Two Pin Terminal Block
Certifications
UL
C/UL
CE
FCC
RoHS Compliance
UL
C/UL
CE
RoHS Compliance
LEDS
1 Power LED
1 Power LED
2 Application LEDs
