Industrial
PROTOCOL GATEWAYS
Real Time Automation (RTA) industrial protocol gateways are hardware modules that translate data from one protocol to another. Sitting between industrial networks, they bridge communication from otherwise incompatible devices while offloading protocol management from PLCs, lowering CPU overhead and ensuring logic stays focused on process control. With over 4,000 protocol conversion solutions, RTA moves your automation data where you want it, when you want it and how you want it. The hardest part of using RTA protocol gateways is opening the box.
Filter RTA Protocol Gateway by Application
Select Source
Choose the device, controller or protocol you have.
Select Destination
Choose the network or system you need to connect to
View Matches
View the recommended gateways for your application
Explore RTA Gateway Modules by Protocol
Protocol Gateway Hardware Options
 N2E |

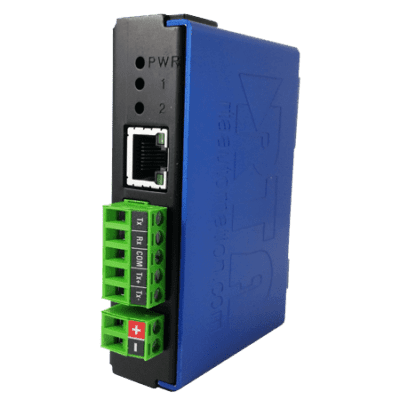

 NNA4 |
NNA1 |

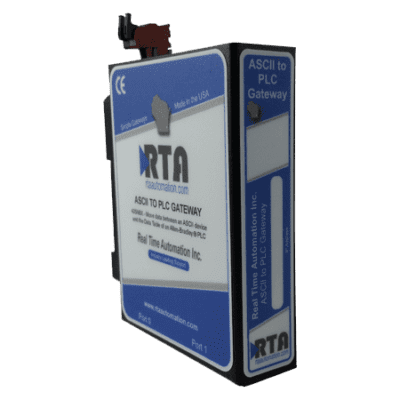

 N700 |

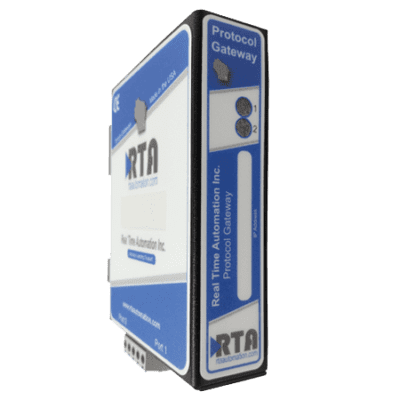

 N34 |
|
|---|---|---|---|---|---|
| Dimensions | 5.40″ x 3.83″ x 1.19″ | 3.88″ x 2.57″ x 1.06″ | 3.88″ x 2.57″ x 1.06″ | 5.40″ x 3.83″ x 1.19″ | 4.2″ x 3.25″ x 1″ |
| Serial Ports | Port 0: 7-Pin Screw Terminal Block |
Port 0: 5-Pin Screw Terminal Block (Pins 1, 2, 3) Port 1: 5-Pin Screw Terminal Block (Pins 3, 4, 5) |
Port 0: 5-Pin Screw Terminal Block (Pins 1, 2, 3) Port 1: 5-Pin Screw Terminal Block (Pins 3, 4, 5) |
Port 0: Male DB9 Port 1: Male DB9 |
Port 0: 5-Pin Screw Terminal Block Port 1: Male DB9 |
| Modes & Limits | 1 x RS-232 1 x RS-485 1 x RS-422 |
2 x RS-485 | Single Port Use: 1 x RS-232 or 1 x RS-485 | 2 x RS-232 1 x RS-485 1 x RS-422 |
1 x RS-232 2 x RS-485 1 x RS-422 1 x CAN |
| Ethernet Ports | 2 x RJ45 | 1 x RJ45 | 1 x RJ45 | 1 x RJ45 | 1 x RJ45 |
| Link Speed & Duplex | Auto-Negotiation 10 or 100 Mbps Half-Duplex 10 or 100 Mbps Full-Duplex |
Auto-Negotiation 10 or 100 Mbps Half-Duplex 10 or 100 Mbps Full-Duplex |
Auto-Negotiation 10 or 100 Mbps Half-Duplex 10 or 100 Mbps Full-Duplex |
Auto-Negotiation 10 or 100 Mbps Half-Duplex 10 or 100 Mbps Full-Duplex |
Auto-Negotiation 10 or 100 Mbps Half-Duplex 10 or 100 Mbps Full-Duplex |
| Mounting | DIN Rail DIN Rail with Power Supply Panel Mount Panel Mount with Power Supply |
DIN Rail DIN Rail with Power Supply Panel Mount Panel Mount with Power Supply |
DIN Rail DIN Rail with Power Supply Panel Mount Panel Mount with Power Supply |
DIN Rail DIN Rail with Power Supply Panel Mount Panel Mount with Power Supply |
DIN Rail DIN Rail with Power Supply Panel Mount Panel Mount with Power Supply |
| LEDs | 1 x Power LED 2 x Application LEDs |
1 x Power LED 2 x Application LEDs |
1 x Power LED 2 x Application LEDs |
1 x Power LED | 1 x Power LED 2 x Application LEDs |
| Power | 12-24 VDC | 12-24 VDC | 12-24 VDC | 12-24 VDC | 12-24 VDC |
| Connector | 2-Pin Screw Terminal Block | 2-Pin Screw Terminal Block | 2-Pin Screw Terminal Block | 2-Pin Screw Terminal Block | 5-Pin Screw Terminal Block (Pins 1 and 5) OR Barrel Connector |
| Certifications | UL, cUL (Class I, Div 2) RoHS Compliant CE Conformity |
UL, cUL RoHS Compliant CE Conformity |
UL, cUL RoHS Compliant CE Conformity |
UL, cUL RoHS Compliant CE Conformity FCC |
UL, cUL (Class I, Div 2) RoHS Compliant CE Conformity FCC |
Why are RTA Gateways the Best Protocol Gateways for Industrial Networking?
Our goal is to make great products that work. That’s why RTA protocol gateways are delivered ready for service with only the features and protocols you need for your application. RTA gateways are easy to use, require little-to-no maintenance and are backed with an industry-leading five-year warranty. Plus, all the configurations are browser-based, so there’s no ongoing subscriptions or software licenses to buy. With over 35 years of experience in industrial networking and communication, chances are we have the device solution you’re looking for.
Protocol Gateway FAQs
Protocol gateways translate data from one protocol to another. Sitting between industrial networks, they bridge communication from otherwise incompatible devices and networks.
Why use a Swiss Army knife when all you need is a butter knife? One-to-one protocol gateways, like RTA gateways, provide simple, one-to-one protocol conversion that eliminates the configuration complexity and premium pricing of competing multi-protocol gateways. Our belief is that you should only pay for the protocols you need instead of overpaying for the dozens of protocols you never will.
Protocol gateways allow controllers and devices leveraging different industrial protocols to communicate with one another, enabling factories to seamlessly integrate legacy and modern control networks. Protocol gateways are preferred over custom logic and other proprietary modules because they offload protocol management from PLCs, lowering CPU overhead and ensuring logic stays focused on process control.
Hardware-based protocol gateways do not require manufacturers to write complex ladder logic or custom drivers, download proprietary software or pay ongoing licensing or subscription fees. The gateway handles all protocol conversion, data transformations and transaction triggering, delivering clean, usable data directly to PLC data tables.
RTA gateways support the following industrial protocols:
- Industrial Ethernet: Allen-Bradley PLC, Ethernet TCP/IP, EtherNet/IP, Modbus TCP, PROFINET and Siemens S7
- Serial and Fieldbus: ASCII, DeviceNet, DF1, DH+, Legacy Allen-Bradley PLCs (DF1- and DH+-based PLCs, 1761-NET-ENI and 1761-NET-AIC), PROFIBUS and USB ASCII
- Building Automation: BACnet MS/TP and BACnet/IP
- IIoT: Amazon Web Services (AWS) IoT Core, Microsoft Azure, MQTT, OPC UA, SNMP, RESTful API and Web Interface
- Backed by over 35 years of experience
- Always in stock
- Same day shipping on orders placed before 2 PM CST
- Assembled in Wisconsin-based headquarters
- Industry-leading 5-year warranty
- 30-day money-back guarantee
- Live, 100% US-based Enginerd support
- Direct access to in-house RTA engineers
