Connect a Modbus TCP/IP Client to Profibus

Easily connect a Modbus TCP/IP Client to a Profibus Controller

SKU: 460MSPBS

460MSPBS

Price$845.00$855.00

Clear

Product Description

Get Your Modbus TCP/IP Client Device Connected to a Profibus DP Controller
The 460MSPBS moves data between a Modbus TCP/IP Client device and a Profibus Controller device. With the 460MSPBS you are making a direct connection between Modbus TCP/IP Client data and user defined slots in your Profibus device.

How Do You Map the Data?
Modbus TCP/IP Client register and coil data will be mapped into 10 Profibus DP slots. The slots will be assigned a type of Int8, int16, int32, int64, UInt8, Uint16, Uint32, Uint64, float, double, binary8, binary16 or binary32.

When writing from your Profibus Controller to your Modbus TCP/IP device, the data in the slots can be mapped to registers and coils in the Modbus TCP/IP Client.

It’s really that simple. Need to modify your data as it passes from one protocol to the other? No problem. Each data mapping you apply can be modified with up to 3 mathematic functions. Add 4 to a value, multiply by 4 and divide by 10 with ease.

Why Use Real Time Automation as a Gateway Supplier?
The 460MSPBS provides an option to access Modbus TCP/IP Client data without having to upgrade your PLC or get an expensive in rack solution. While there are certainly a number of other companies offering stand alone gateways, there is no one who provides the level of support and service that you receive from RTA.

When you call a live person answers the phone. When you talk with sales you will get honest answers and recommendations, even if that means recommending someone else’s solution. When you get support it is from an engineer who had a hand in the product’s development and support doesn’t require a ticket or 24 hour wait. We are unashamed of the fact that we are a smaller company because that means you mean a lot more to us. Try the RTA difference today!

  • Manual
  • 3’ power cable with Flying leads
  • 5 Year Hardware Warranty
  • IPSetup software — Automatically locates RTA Gateway on the network
  • Unlimited Firmware Feature Upgrades for Life
  • CAT5 Cross over cable for direct connection to PC during programming
  • Complete, Unlimited Access to our Industry Leading Support Staff

Modbus TCP/IP Server Features

Modbus Operation Modes
Modbus TCP/IP Server

Function Codes Supported
1,2,3,4,5,6, 7,15 & 16

Swapping
Byte and Word Swapping

Maximum Modbus TCP/IP Client Connections
1

Contiguous Data Areas
200 Total - 100 reads & 100 writes

Data Area Limits
500 Contiguous Coils or 500 Contiguous Registers

Profibus Slave Features

Object Model
10 Slots in each direction

Slot Size
2, 4, 8, 16, 24, 32 Bytes

Data Representation
int8, int16, int32, int64, uint8, uint16, uint32, uint64, Float, Double, binary8, binary 16, binary 32, Short String

Total Data Supported
244 Bytes in each direction

Maximum Profibus DP Connections
1

Gateway Security

You can configure up to 9 different users access to diagnostic and configuration screens.

Alarming

Set <, <=, >=, >, ==, !=, and Change-of-State rules on any data moving through the gateway. If alarm rule is triggered an email notification can be sent.

Translation Table

Allows for data manipulation during protocol translation. Scaling and other data format changes can occur in the gateway.

Status and Counters

Protocol specific status, counters and error messages are accessible within the gateways diagnostics page. They can also be delivered to a connected device.

Diagnostic Logging Page

Allows users to see and log start up sequences, protocol specific messages & error messages.

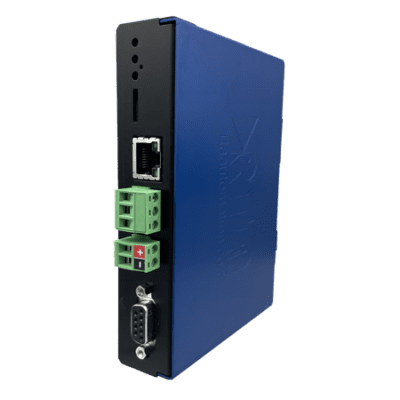

460MSPBS-N70PB
